Sheet metal manufacturers are under constant pressure to produce accurate components faster while controlling energy use, material waste and operating costs. As fabrication requirements become more demanding, conventional bending equipment may not always provide the flexibility, repeatability and process control required for modern production.
A hybrid servo press brake addresses these challenges by combining hydraulic force with servo-controlled technology. The result is a bending system designed to deliver controlled movement, precise positioning and efficient operation across a wide range of sheet metal applications.
For manufacturers evaluating new fabrication machinery, understanding how hybrid servo technology works—and how it can complement equipment such as a longitudinal seam welding machine—can help in building a more efficient production line.

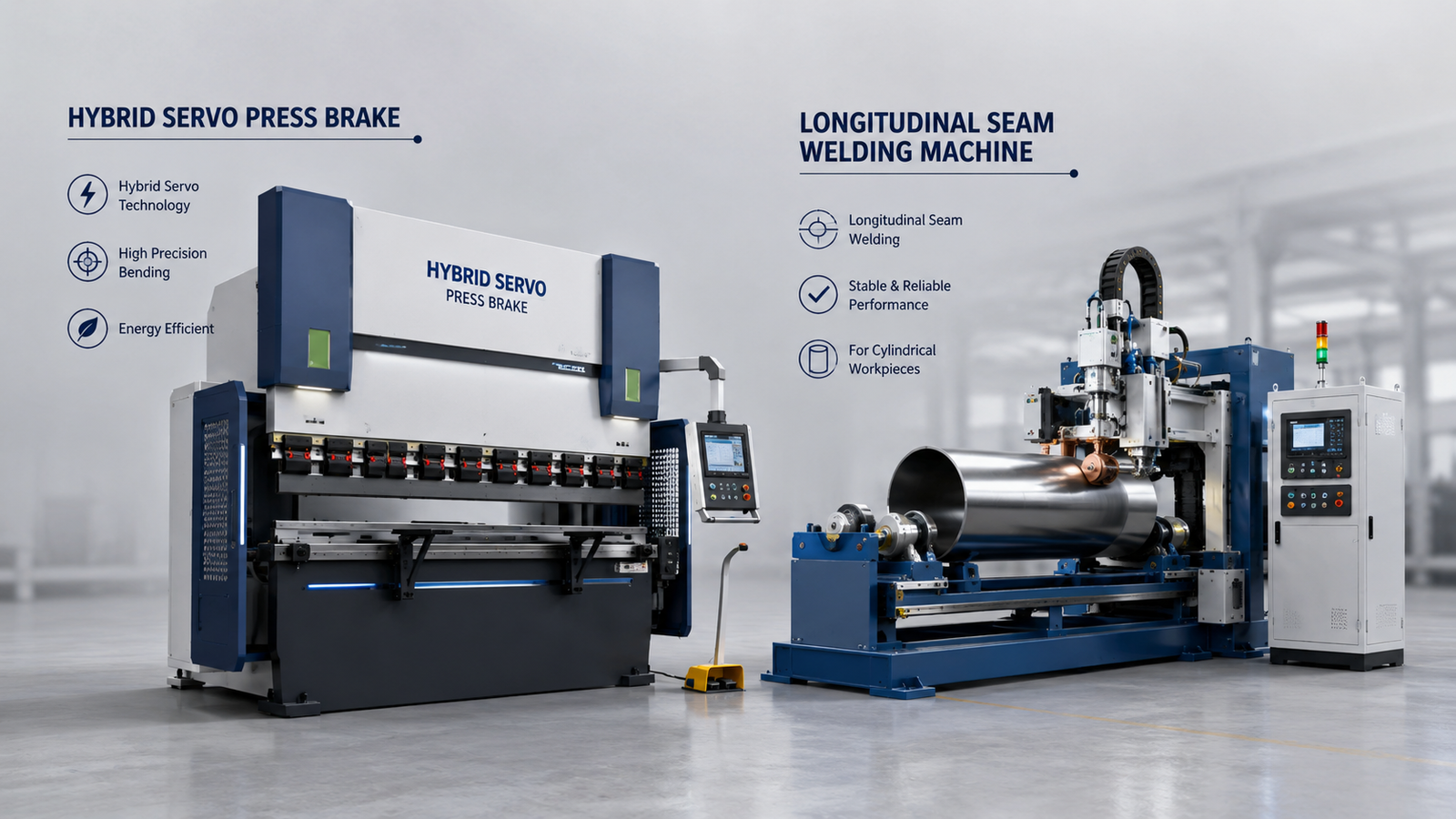

A hybrid servo press brake is a sheet metal bending machine that integrates servo-driven control with hydraulic power. Unlike a traditional hydraulic press brake that may keep the hydraulic system running continuously, a hybrid system controls hydraulic operation according to actual bending demand.
In simple terms, the machine uses sophisticated servo control to manage the movement and positioning of the ram while hydraulic components provide the force required for bending.
This combination can provide several practical advantages:
· Precise ram positioning
· Controlled bending speed
· Consistent repeatability
· Reduced unnecessary hydraulic operation
· Improved process efficiency
· Better control over complex bending sequences
Actual capabilities depend on the machine design, tonnage, tooling, CNC control system and workpiece specifications.
The bending process begins when the operator or CNC programme defines parameters such as material thickness, bend angle, tooling and component dimensions.
The machine then coordinates the back gauge, ram and hydraulic system to perform the programmed bending operation.
The sheet is positioned against the CNC-controlled back gauge. Accurate positioning is important because even a small dimensional error at this stage can affect the final component.
The ram moves towards the workpiece at a controlled speed. Servo technology enables the machine to regulate movement according to the programmed bending cycle.
As the punch contacts the sheet, hydraulic pressure generates the required bending force. The required tonnage depends on factors including material type, sheet thickness, bend length, die opening and bending method.
After completing the bend, the ram returns to its programmed position and the machine prepares for the next operation.
For components requiring several bends, CNC programming can simplify the sequence and help operators maintain consistency between parts.
The decision to upgrade bending machinery is rarely based on speed alone. Manufacturers must consider accuracy, operating costs, maintenance, production flexibility and the ability to manufacture increasingly complex components.
A hybrid servo press brake can be particularly useful where repeatability and controlled machine movement are priorities.
Accurate bending depends on more than machine tonnage. Ram positioning, tooling condition, material characteristics and back-gauge accuracy all influence the final angle.
Servo-controlled movement gives operators greater control over the bending cycle, which can support consistent production when the machine is correctly configured.
Traditional hydraulic systems may operate pumps continuously during production. Hybrid designs can control hydraulic power according to machine demand.
This means energy is used more selectively during different stages of the bending cycle. The actual energy saving will vary considerably between machine designs, workloads and production patterns, so buyers should request model-specific consumption data from the supplier.
Modern fabrication often involves multiple product variants and relatively short production runs.
A CNC-controlled hybrid system can store bending programmes for repeat components. This can reduce the amount of manual adjustment required when returning to an established job.
Depending on the machine configuration, hybrid systems may use optimised hydraulic arrangements compared with conventional designs. This can contribute to a cleaner and more controlled manufacturing environment.
However, maintenance requirements should always be evaluated against the specific machine rather than assuming every hybrid press brake uses the same hydraulic design.
Choosing between technologies should be based on production requirements rather than simply selecting the newest option.
| Factor | Hybrid Servo Press Brake | Conventional Hydraulic Press Brake |
| Ram control | Servo-controlled hydraulic operation | Primarily hydraulic |
| Energy usage | Demand-based operation possible | Often more continuous hydraulic operation |
| Positioning | Designed for precise CNC control | Depends heavily on machine specification |
| Production flexibility | Well suited to programmable jobs | Suitable for many standard bending tasks |
| Initial investment | Can be higher | Often lower depending on specification |
| Maintenance | Requires hydraulic and electronic expertise | Established hydraulic maintenance practices |
| Best suited for | Precision and flexible production | General fabrication and established workloads |
Neither technology is automatically suitable for every workshop. A company performing straightforward, low-volume bending may have different priorities from a manufacturer producing complex fabricated assemblies every day.
The technology can be applied across industries where sheet metal must be formed accurately.
Typical applications include electrical enclosures, control cabinets, industrial machinery, automotive components, HVAC equipment, stainless-steel products, architectural metalwork, storage systems and fabricated assemblies.
For example, an enclosure manufacturer may need to produce panels with several closely controlled bends. CNC programming can help maintain dimensions across batches while allowing stored programmes to be reused for repeat orders.
Bending is frequently only one stage of a larger fabrication process. Components may subsequently require welding, finishing, assembly or inspection.
This is where a longitudinal seam welding machine becomes particularly relevant.
A longitudinal seam welding system is designed to create a continuous weld along the length of a component. It is commonly considered for applications involving cylinders, tanks, ducts, pipes, containers and other formed sheet metal products requiring a consistent longitudinal joint.
Consider the manufacture of a fabricated metal enclosure or formed vessel.
The production sequence may involve:
1. Cutting the sheet to the required dimensions.
2. Forming or bending it using a hybrid servo press brake.
3. Aligning the formed edges.
4. Joining the edges with a longitudinal seam welding machine.
5. Inspecting the weld and dimensions.
6. Completing finishing and assembly.
Accurate bending can make the subsequent welding stage easier because the edges arrive at the welding station with more consistent geometry.
A longitudinal seam welding machine is specialised welding equipment designed to maintain alignment while producing a straight, continuous weld along a workpiece.
Depending on the application and machine configuration, the system may support welding processes such as TIG, MIG/MAG or plasma welding.
Important selection factors include:
· Workpiece length and diameter
· Material type and thickness
· Required welding process
· Joint configuration
· Clamping method
· Welding travel speed
· Torch positioning
· Production volume
· Automation requirements
Buyers should discuss actual components with the equipment supplier instead of selecting a machine based only on maximum capacity.
The most powerful machine is not necessarily the best machine. Overspecifying equipment can increase capital costs without providing meaningful production benefits.
Required bending force depends on material tensile strength, thickness, bend length, die opening and bending method.
Manufacturers should calculate tonnage for their actual product range and maintain an appropriate operating margin.
The working length should accommodate both existing products and realistic future requirements. Common configurations vary significantly, so machine selection should begin with actual component drawings.
The CNC system influences day-to-day usability.
Useful capabilities may include graphical programming, automatic bend sequencing, tooling libraries, angle correction functions and offline programming, depending on the controller and machine specification.
Simple parts may only require basic back-gauge movement, while complex components can benefit from multi-axis positioning.
The correct configuration should reflect the geometry of the parts being manufactured.
Even an advanced press brake cannot compensate for unsuitable or worn tooling.
Punch and die selection should consider:
· Material thickness
· Required internal radius
· Bend angle
· Component geometry
· Material properties
· Surface finish requirements
Suggested internal link: Press Brake Tooling and Die Selection Guide
A press brake generates substantial force, making machine safety an essential purchasing and operational consideration.
Depending on the machine and applicable regulations, safety provisions may include guarding, emergency stops, light curtains, laser protection systems, interlocks and controlled operating modes.
Operators should receive appropriate training covering machine controls, tooling changes, material handling, safe operating procedures and emergency response.
Suggested internal link: Sheet Metal Machinery Safety Guidelines
Local search intent often indicates that a buyer is not simply researching technology—they may be comparing suppliers, requesting quotations or planning a factory visit.
Before purchasing a hybrid servo press brake, ask the supplier about machine tonnage, bending length, controller capabilities, back-gauge axes, tooling compatibility, installation requirements, operator training, warranty conditions and after-sales support.
For a longitudinal seam welding machine, provide the supplier with representative component drawings and details of the material, thickness, seam length, production volume and preferred welding process.
A competent supplier should be able to discuss the application rather than simply quote a standard machine specification.
The greatest productivity gains often come from examining the entire manufacturing sequence.
Cutting, bending, welding and finishing should work as connected processes. For example, inaccurate blanks from the cutting stage can create problems during bending, while inconsistent forming can increase alignment work at the seam-welding stage.
Manufacturers planning new equipment should therefore evaluate workflow, material movement, programming, inspection and operator requirements alongside individual machine performance.
Suggested internal links: Sheet Metal Fabrication Machinery, Industrial Welding Solutions, and CNC Metal Forming Equipment.
It depends on the application. Hybrid technology can offer precise control and demand-based hydraulic operation, while conventional hydraulic machines remain suitable for many fabrication requirements.
Depending on machine capacity and tooling, applications may include mild steel, stainless steel, aluminium and other formable sheet metals.
Tonnage depends on material strength, thickness, bend length, die opening and bending method. Use manufacturer-approved calculations for the specific application.
For complex components, repeat jobs and multiple bending sequences, CNC control can considerably simplify programming and positioning.
It produces a continuous longitudinal weld while controlling the alignment and movement of the workpiece or welding torch.
Yes. Formed sheet components can move from bending to longitudinal welding as part of an integrated fabrication workflow.
Provide component drawings, materials, thickness ranges, dimensions, required production volumes and any special accuracy or process requirements.
Look beyond the initial machine price. Consider application engineering, commissioning, operator training, spare parts, technical support and after-sales service.
